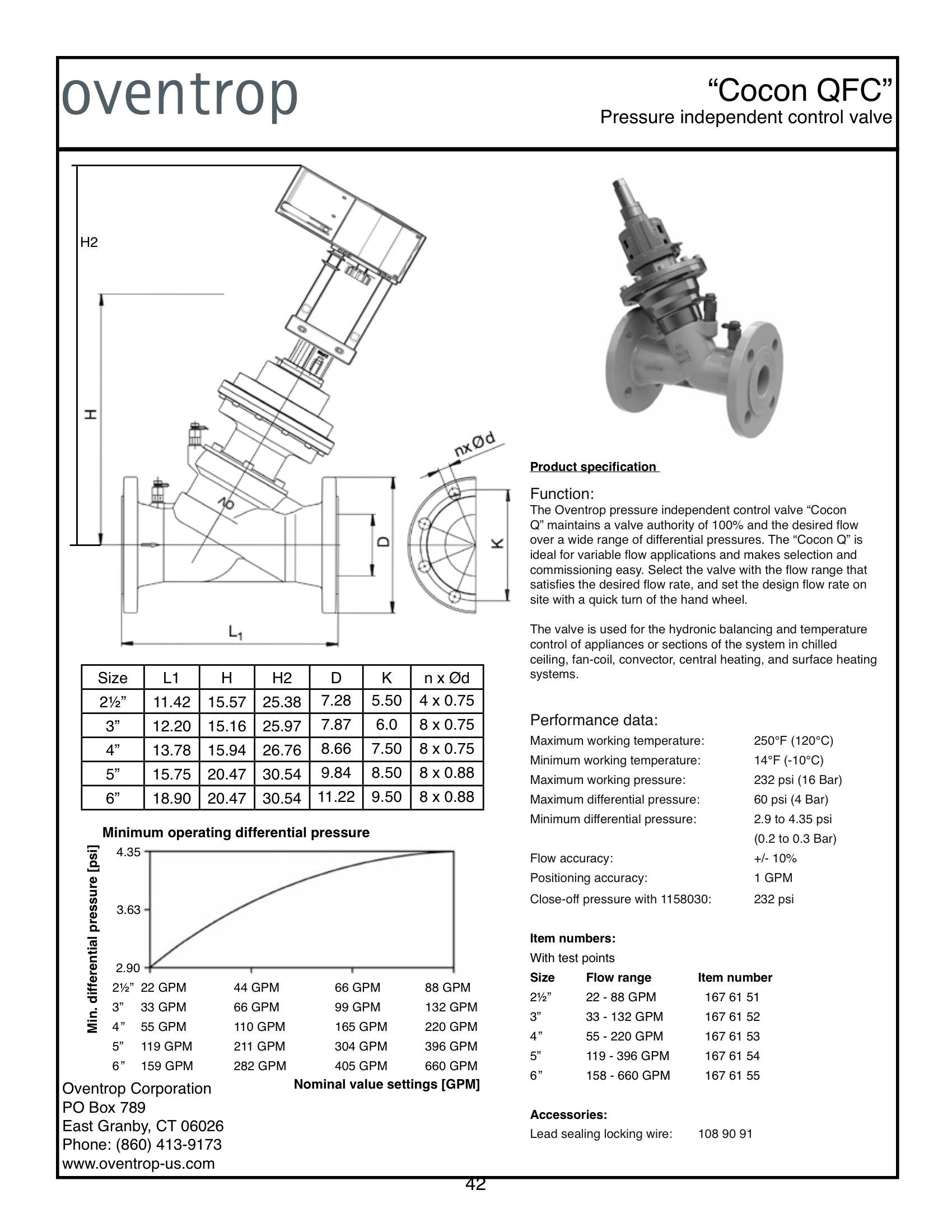

"Cocon QFC" cast-iron pressure independent control valves

Pressure independent control valves for hydronic systems. The body is made of cast-iron with bronze and dezincification resistant brass trim. The internal pressure controller is made of high temperature engineered polymer for prolonged service life. Close-off pressure rating of 232 PSI. Linear valve characteristic, modified by the actuator characteristic. Lockable setting. Flow setting range. Field adjustable. Easily visible flow setting dial. The flow rate can be adjusted without removing the actuator or decommissioning the valve. The flow setting of the valve is indicated in GPM. No conversion chart is necessary.

Size:Flow Range:Connection Type:Part Number:
DN40 - 1-1/2"6.6 to 33 GPMANSI 150 Flanged1676149
DN50 - 2"8.8 to 35.2 GPMANSI 150 Flanged1676150
DN65 - 2-1/2"22 to 88 GPMANSI 150 Flanged1676151
DN80 - 3"33 to 132 GPMANSI 150 Flanged1676152
DN100 - 4"55 to 220 GPMANSI 150 Flanged1676153
DN125 - 5"119 to 396 GPMANSI 150 Flanged1676154
DN150 - 6"158 to 660 GPMANSI 150 Flanged1676155
DN200 - 8"242 to 837 GPMANSI 150 Flanged1676156
